AudioCast Controller

Control your LinkPlay (AudioCast / WiiM) device from Raycast.

Features

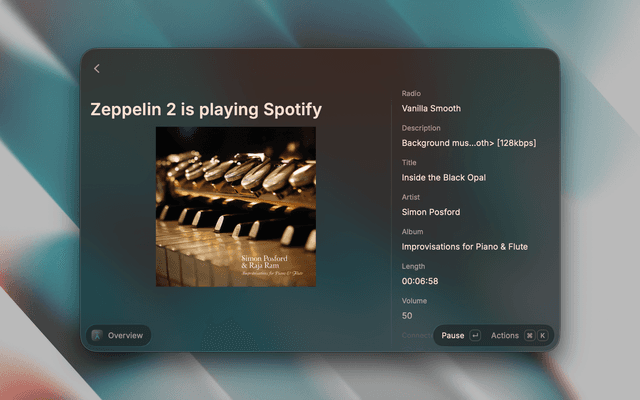

Device Overview

See device status at a glance — playback state, current track with cover art, volume level, Wi‑Fi signal strength, and connected network.

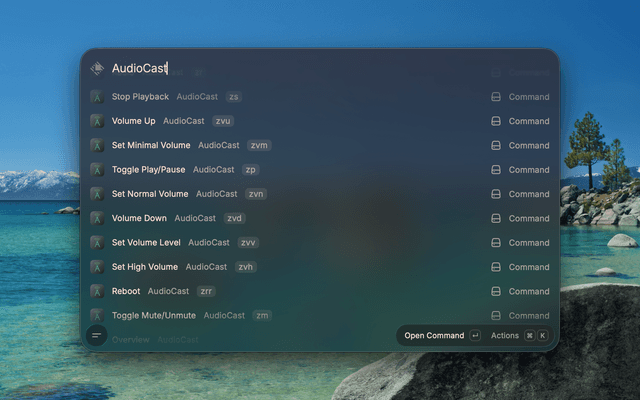

Playback Control

• Toggle play/pause and stop playback
• Volume — set a specific level, increase/decrease in 5% steps, or use preset levels (minimal/normal/high)
• Toggle mute/unmute
• Reboot the device

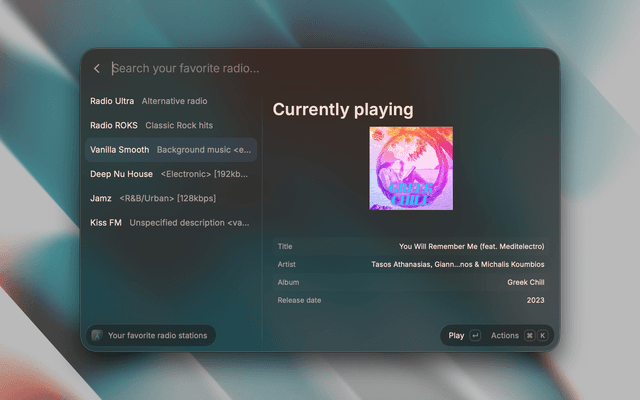

Radio Stations

• Manage a personal list of favorite radio stations
• Play a station directly on the device with one click
• ICY metadata — view the currently playing song and artist from the stream
• The currently playing station is highlighted with a ♪ symbol

Album Art

• Radio tracks are matched against iTunes API for cover art and release info
• Spotify playback displays track info via UPnP

Tested Devices

• AudioCast M5
• AudioCast Olio

---

Limitations

• Single device only — the first device discovered on the network will be controlled. Multi‑device setups are not yet supported.

---

How It Works

Device Discovery

The extension uses mDNS to discover LinkPlay devices on the local network. The device advertises itself with service type _linkplay._tcp.

Connection Security

LinkPlay devices use HTTPS with mutual TLS (mTLS) authentication. The extension:

• Authenticates with a client certificate and private key (extracted from the Android APK)
• Validates the device certificate (auto‑fetched during discovery)
• Only applies mTLS to device connections — external API calls (iTunes, etc.) use standard TLS

The client certificate (assets/link_play_cert.pem) and key (assets/link_play_key.pem) were extracted from the Android app bundle. These are manufacturer-issued protocol credentials shared across all LinkPlay clients (not user-specific secrets) — an accepted trade-off required for mTLS device authentication.

LinkPlay API

The device exposes two APIs:

HTTP API (/httpapi.asp) — simple key‑value over HTTP:

• getStatusEx / getStatus — device info, firmware, SSID, signal strength
• getPlayerStatus — playback state, volume, mute, mode (radio/Spotify/etc.), title/artist/album
• setPlayerCmd:play:<url> — start playback of a URL
• setPlayerCmd:pause / resume / stop / onepause — playback control
• setPlayerCmd:vol:<0‑100> — set volume
• setPlayerCmd:mute:<0|1> — mute/unmute
• reboot — restart the device

UPnP (SOAP over HTTP on the mDNS port, e.g. http://<host>:59152/upnp/control/rendertransport1):

• AVTransport:GetInfoEx — combined transport state, track metadata, volume, mute, alarm status Used for Spotify playback info and other services that populate DIDL metadata.
